Parts list

ARDUINO NANO - ArduinoNanoV30 1                                                                                   Tripmaster2000ver0403

C1 - 1uf 35v electrolytic capacitor

C2 - 100 NF capacitor

C3 - 100 NF capacitor

C4 - 100 uf 35v electrolytic capacitor

C5 - 33 uf 35v electrolytic capacitor

C6 - 10uf 35v electrolytic capacitor

IC1 - 7808T

IC2 - CD4093 size DIP14

JP1 - PINHD-1X8BIG

JP2 - PINHD-1X6B

JP3 - PINHD-1X6B

R1 - 1K

R2 -390

R3 - 10K

R4 - 10K

R5 - 10K

R6 - 10K

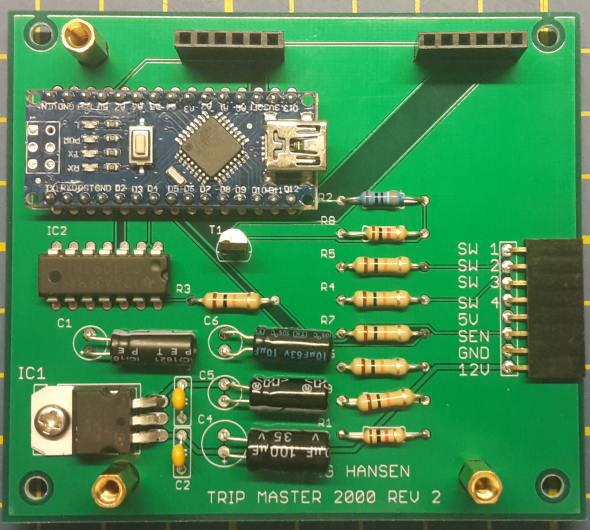

R7 - 10KTripmaster2000ver0404

R8 - 1K

R9 - 10K

T1 - 2N3904

SW 01  - Switch Momentary

Sw 02  - Switch Momentary

Sw 03  - Switch Momentary

Sw 04  - Switch Momentary

Sw 05  - Aritech dc555 Hall swtich

Display ST7920 128X64 12864 LCD Display

PCB 78 X 88 mm

Enclosure Velleman G311 115x90x55 mm

Hall sensor
